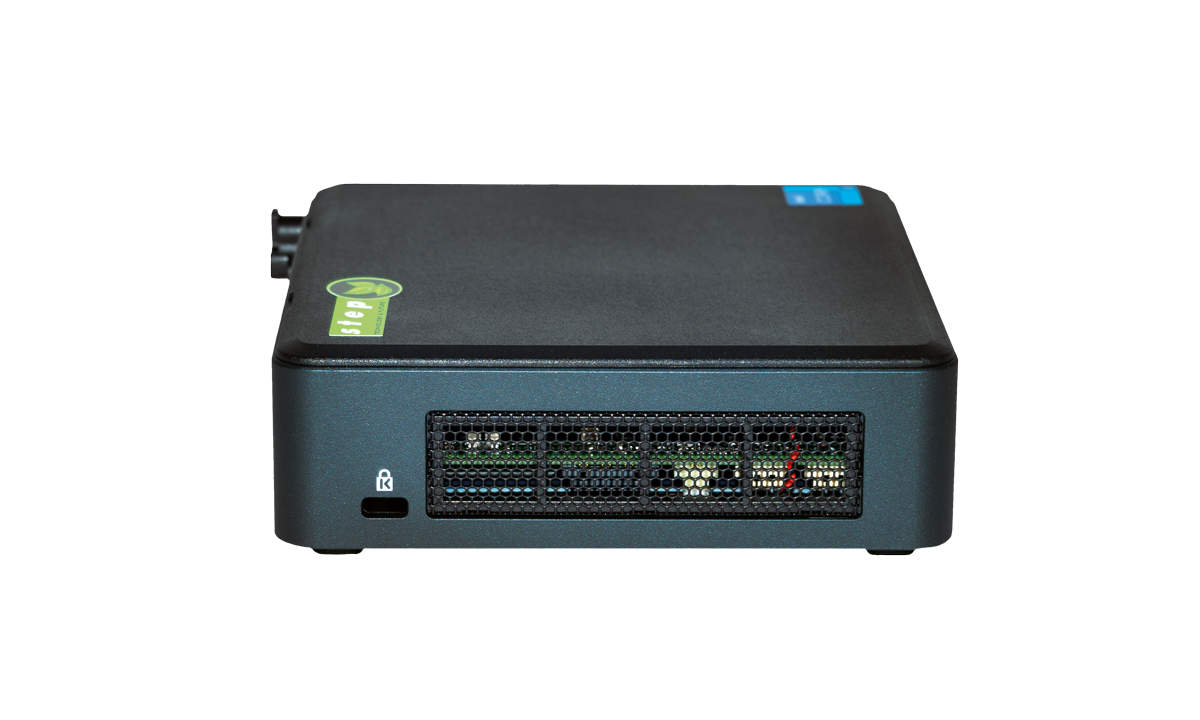

step Micro DS5125 i5-1240P
Artikel-Nr.:
Herst.-Nr.:
EAN:
1077664
1077664
4260700592069
- Intel® Core™ i5-1240P Prozessor
- SoC (System-on-Chip)
- 8 GB DDR4 SO-DIMM
- 512 GB PCIe (NVMe)
- Intel® Iris® Xe Grafik
- Wi-Fi 6E (802.11ax)
- 2 über Thunderboltx DisplayPort 1.4, 2x HDMI 2.0b
- Windows 11 Pro
- 24 Monate Garantie (bring in)
811,23 €
Empfohlener VK-Preis inkl. MwSt.
für individuelle Preise bitte einloggen
Auf Lager
| Betriebssystem | |
| Windows Lizenz: | Windows 11 Pro |
| Prozessor | |
| Prozessor Name: | Intel® Core™ i5-1240P Prozessor |
| Anzahl Cores: | 12 |
| Anzahl Performance-Cores: | 4 |
| Anzahl Efficient-Cores: | 8 |
| Anzahl Threads: | 16 |
| Cache-Größe: | 12 MB |
| Grundtaktfrequenz: | 3,30 GHz |
| Maximale Turbotaktfrequenz: | 4,40 GHz |
| Verlustleistung (TDP): | 28 Watt |
| Mainboard | |
| Chipsatz: | SoC (System-on-Chip) |
| Arbeitsspeicher | |
| RAM-Speicher: | 8 GB |
| Speichertyp: | DDR4 SO-DIMM |
| Speichertaktfrequenz: | 3200 MHz |
| Solid-State-Disk (SSD) | |
| Gesamtkapazität (GB): | 512 GB |
| Bauform: | M.2 |
| Schnittstelle: | PCIe (NVMe) |
| Lesen: | 3700 Megabyte pro Sekunde (MBps) |
| Schreiben: | 2200 Megabyte pro Sekunde (MBps) |
| Total Bytes Written (TBW): | 320 Terabyte |
| Onboard Grafik | |
| Integrierter Grafikchip: | Intel® Iris® Xe Grafik |
| Anzahl Displays: | 4 |
| Wireless LAN / Bluetooth | |
| Hersteller: | Intel® |
| WLAN Standard: | Wi-Fi 6E (802.11ax) |
| Maximale Datenübertragung: | 2400 Mbit/s |
| Bluetooth Version: | 5.2 |
| Netzwerkkarte | |
| Anschluss 1: | Intel® i225-V 10/100/1000/2500 Mbps RJ45 |
| Anschlüsse vorne | |
| Anzahl USB 3.1 Typ-A : | 2 |
| Line-in/out Combo : | 1 |
| Anschlüsse hinten | |
| Anzahl HDMI 2.0b: | 2 |
| Anzahl DisplayPort 1.4: | 2 über Thunderbolt |
| Anzahl USB 2.0 Typ-A: | 1 |
| Anzahl USB 3.1 Typ-A: | 1 |
| Thunderbolt (DisplayPort 1.4a und USB 4.0): | 2 |
| Anzahl RJ45: | 1 |
| DC-in Stromanschluss: | 19 Volt |
| Gehäuse | |
| Gehäusetyp: | Micro PC |
| Breite: | 11,7 cm |
| Höhe: | 3,7 cm |
| Tiefe: | 11,2 cm |
| Kensington Lock: | 1 |
| Kühlung aktiv/passiv: | aktiv |
| Netzteil | |
| Max. Ausgangsleistung: | 65 Watt |
| Eingangsspannung : | 100 - 240 Volt |
| Ausgangsspannung : | 19 Volt |
| Extern: | ja |
| Lieferumfang | |
| VESA Halterung : | ja |
| Garantie | |
| Garantie (bring in): | 24 Monate |
| Windows Lizenz: | Windows 11 Pro |
| Prozessor Name: | Intel® Core™ i5-1240P Prozessor |
| Anzahl Cores: | 12 |
| Anzahl Performance-Cores: | 4 |
| Anzahl Efficient-Cores: | 8 |
| Anzahl Threads: | 16 |
| Cache-Größe: | 12 MB |
| Grundtaktfrequenz: | 3,30 GHz |
| Maximale Turbotaktfrequenz: | 4,40 GHz |
| Verlustleistung (TDP): | 28 Watt |
| Chipsatz: | SoC (System-on-Chip) |
| RAM-Speicher: | 8 GB |
| Speichertyp: | DDR4 SO-DIMM |
| Speichertaktfrequenz: | 3200 MHz |
| Gesamtkapazität (GB): | 512 GB |
| Bauform: | M.2 |
| Schnittstelle: | PCIe (NVMe) |
| Lesen: | 3700 Megabyte pro Sekunde (MBps) |
| Schreiben: | 2200 Megabyte pro Sekunde (MBps) |
| Total Bytes Written (TBW): | 320 Terabyte |
| Integrierter Grafikchip: | Intel® Iris® Xe Grafik |
| Anzahl Displays: | 4 |
| Hersteller: | Intel® |
| WLAN Standard: | Wi-Fi 6E (802.11ax) |
| Maximale Datenübertragung: | 2400 Mbit/s |
| Bluetooth Version: | 5.2 |
| Anschluss 1: | Intel® i225-V 10/100/1000/2500 Mbps RJ45 |
| Anzahl USB 3.1 Typ-A : | 2 |
| Line-in/out Combo : | 1 |
| Anzahl HDMI 2.0b: | 2 |
| Anzahl DisplayPort 1.4: | 2 über Thunderbolt |
| Anzahl USB 2.0 Typ-A: | 1 |
| Anzahl USB 3.1 Typ-A: | 1 |
| Thunderbolt (DisplayPort 1.4a und USB 4.0): | 2 |
| Anzahl RJ45: | 1 |
| DC-in Stromanschluss: | 19 Volt |
| Gehäusetyp: | Micro PC |
| Breite: | 11,7 cm |
| Höhe: | 3,7 cm |
| Tiefe: | 11,2 cm |
| Kensington Lock: | 1 |
| Kühlung aktiv/passiv: | aktiv |
| Max. Ausgangsleistung: | 65 Watt |
| Eingangsspannung : | 100 - 240 Volt |
| Ausgangsspannung : | 19 Volt |
| Extern: | ja |
| VESA Halterung : | ja |
| Garantie (bring in): | 24 Monate |
